Building an LS Bracket Motor from Scratch Part I

Part I: Picking the Power Parts

When you’re building an engine from scratch, there are any numbers of ways to begin the selection process.  You can build the short block and go from there (and that seems to be the most common method). But there is another way, and I think it’s a wee bit better:  Start with the induction system (heads, intake, carb and cam) and build the rest to match. Dumb idea?  Maybe, but today you’ll find that the top end of the engine is where you’ll find the power.  The rest of the pieces pretty much contain the combustion carnage.

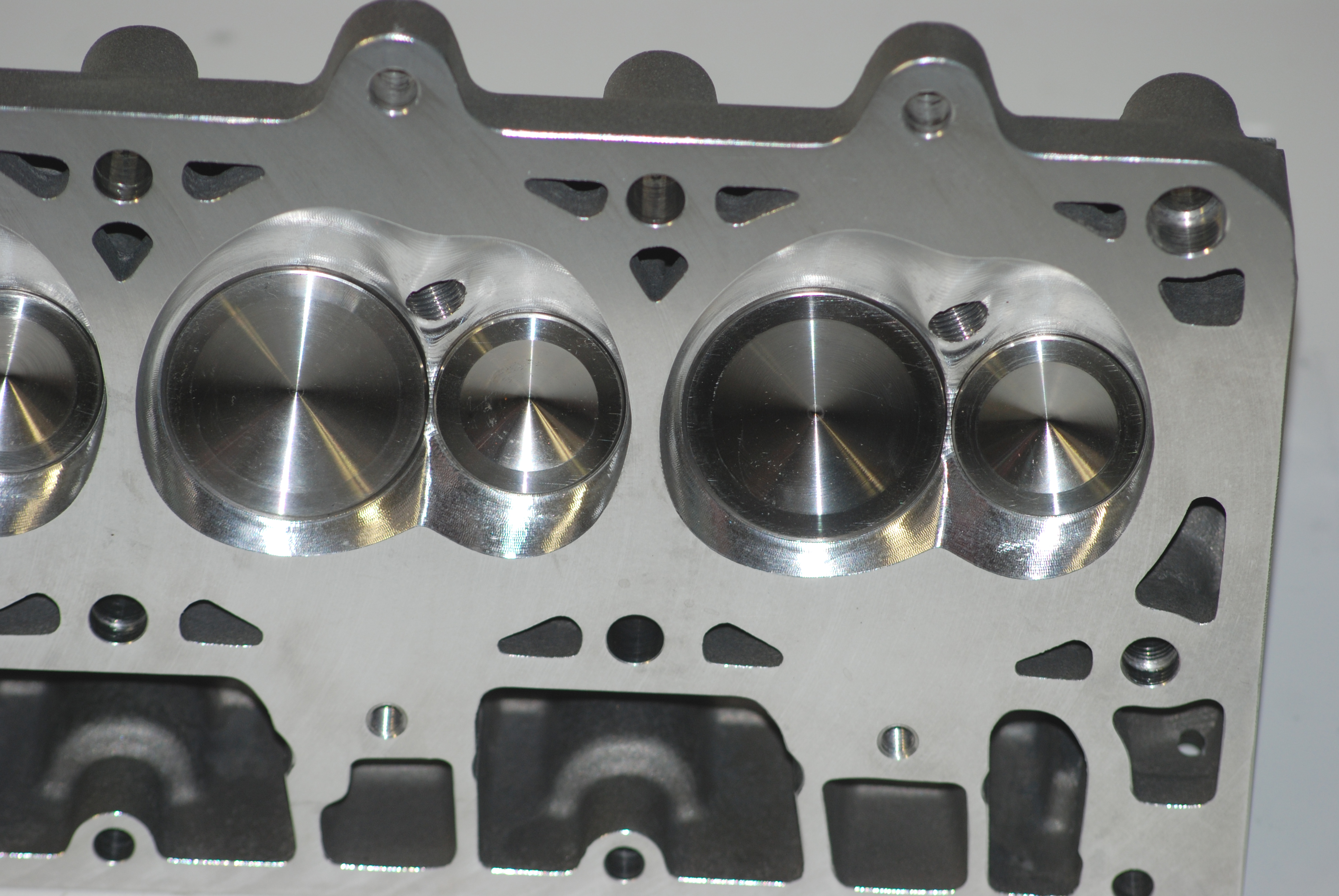

For our hypothetical LS motor, we’ll start with the heads.  Here, we use a set of Brodix BR7 STS jobs.  These are readily available, high quality LS7 style heads.  Even in CNC ported form, they have a relatively small port volume (264 cc) and have a 2.204-inch intake valve (yes, that’s big block territory). The Brodix BR 7 head series has an intake port volume that is closer to an oval port rat motor than a small block. There’s a wee hitch in the comparison though:  The big block has a long intake tract with a couple of convoluted ports. The LS motor is a symmetrical port arrangement (with all ports being equal).  They have direct paths right into the combustion chamber.  As a result, the ports tend to be shorter than their big block ancestors.

So far so good, but just how much “air” do these cylinder heads move in the intake port?  What follows is flow data in cubic feet per minute (CFM) collected from Brodix, using a baseline figure of 28-inches for comparison purposes.

STS BR 7 Intake Flow

Valve Lift (inch)	.200	.300	.400	.500	.600	.650
Intake Flow	159	240	303	343	369	376

These things flow serious air and according to folks in the know, the air speed is high.  Translated, a properly setup engine with this head arrangement will produce some serious steam.

On the exhaust side, the head has a 1.614-inch valve.  Here are the flow figures:

STS BR 7 Exhaust Flow

Valve Lift (inch)	.200	.300	.400	.500	.600	.650
Exhaust Flow	116	169	208	224	233	235

The combustion chamber is a 12-degree setup. Essentially, that straightens the valve up, unshrouds the sides of the valves within the combustion chamber and provides the basis for a small, efficient chamber.  That translates into a situation where you can move air at a faster pace (increase velocity), and that’s really good news when it comes to cylinder heads.

Finally, this head accepts primarily OEM components. That means you can use conventional LS7 headers, any number of OEM or replacement rocker arms and so on.

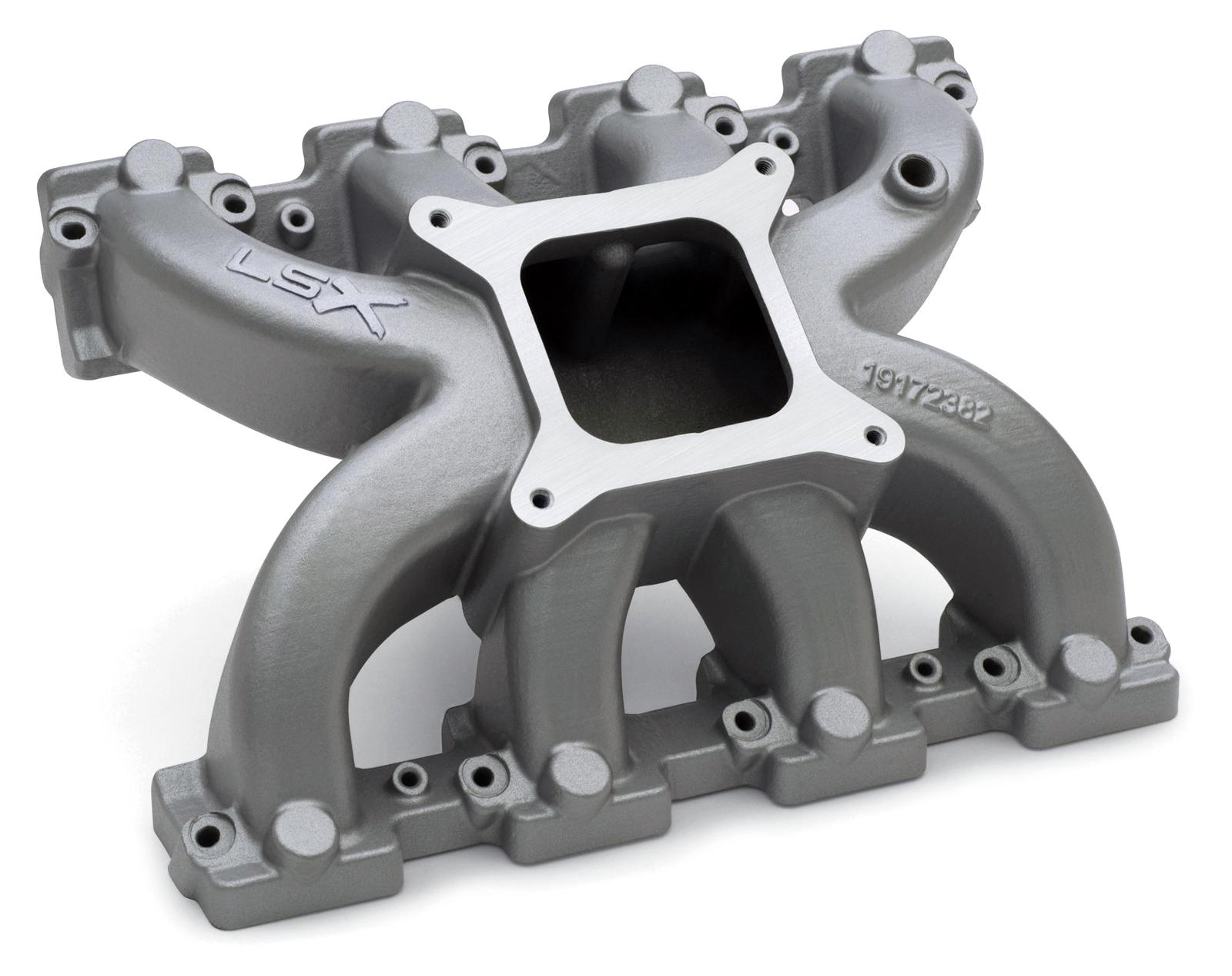

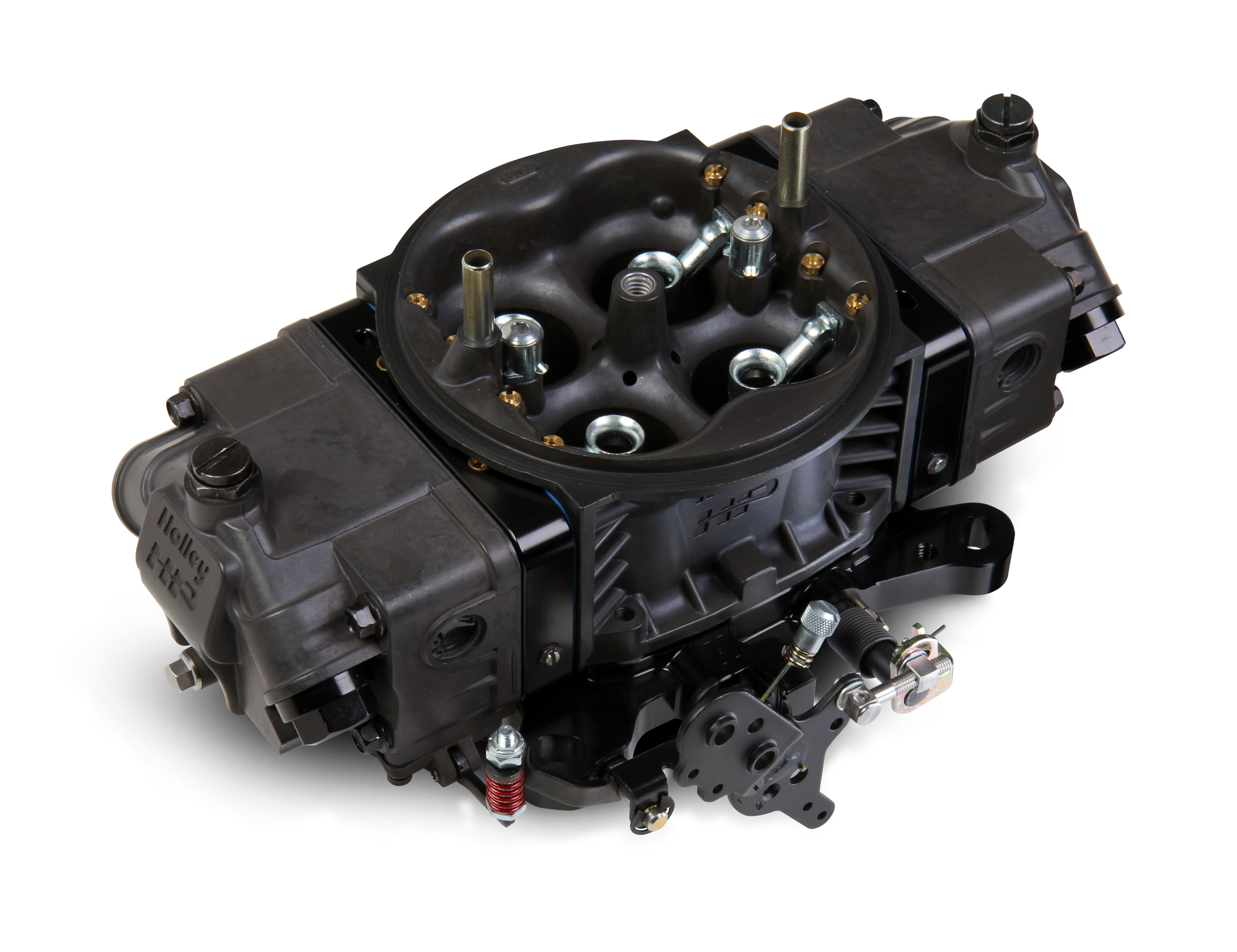

For an intake, we’d go straight to Chevrolet Performance for one of their # 1924403 single plane LS7/LSX intakes. It’s designed for a 4150 series Holley carb and is a direct fit to the Brodix heads.  We’d port match the intake to the cylinder heads and call it done. The carb of choice?  We’d start with an 850 CFM Holley Ultra Billet job.  This is Holley’s latest aluminum piece with four corner idle, provision for a throttle stop, a choice of 1:1 or progressive linkage (the secondary link is adjustable), plus it’s fully adjustable with emulsion tube bleeds, power valve channel restrictors & idle feed restrictors. Power valve channel restrictors are also machined lower in metering block for improved fuel delivery to power valve circuit.  Bottom line?  This is a serious race carb that is pretty much perfect for bracket racing.

Upstairs, a set of Crower stainless steel shaft rockers (# 74107F) will fit the bill. You’ll have to have the heads machined to accept the Crower shaft arrangement, but the folks from Brodix can help you out with the machining when you order the heads.

For a camshaft, we’d straight to Lunati and order one of their VooDoo 286/298 hydraulic roller cam & lifter kits. This is a very serious, but actually streetable cam, and requires engine and computer modifications (Bonus for us – we’re using a carb). And yes, it has a rough idle and the converter we use will have to be matched. Here are the specs:

Advertised Duration (Int/Exh)	286/298
Duration @ .050 (Int/Exh)	235/247
Gross Valve Lift (Int/Exh)	.651/.651
LSA/ICL	112/108
Valve Lash (Int/Exh)	Hyd/Hyd
RPM Range	2400-7000

Why pick a hydraulic cam?  Simple.  We’re looking for no-fuss, no muss in a bracket buildup. The cam we picked matches the heads nicely.  It has a good power range and trackside maintenance is minimal (actually zero).  That’s a big bonus for a bracket car.  It allows you concentrate on going rounds instead of fixing.

Next time around, we’ll go downstairs and “build” the shortblock.  You might be surprised at some of the parts we pick.















Parts Used		Parts #
Heads	Brodix BR7 STS LS7 heads
Intake	Chevrolet Performance LS7/LSX intakes	# 1924403
Carburetor	850 CFM Holley Ultra Billet
Rockers	Crower stainless steel shaft rockers	# 74107F
Camshaft	Lunati VooDoo 286/298 hydraulic roller cam & lifter kits

——————————————————————————————————————————————————————–
