[Gallery] Eric's 1934 Coupe Named "The Beast"

Click Here to Begin Slideshow

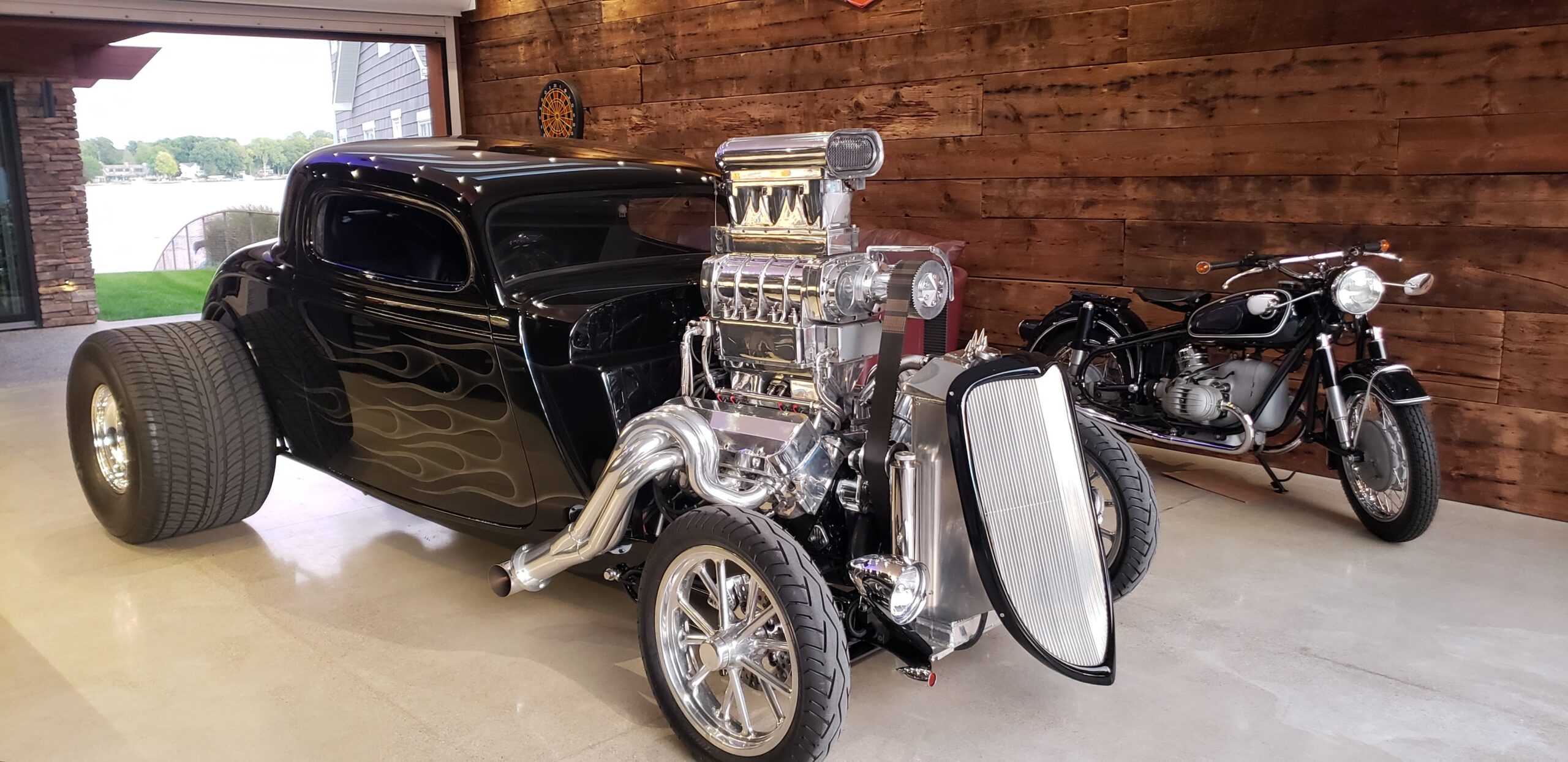

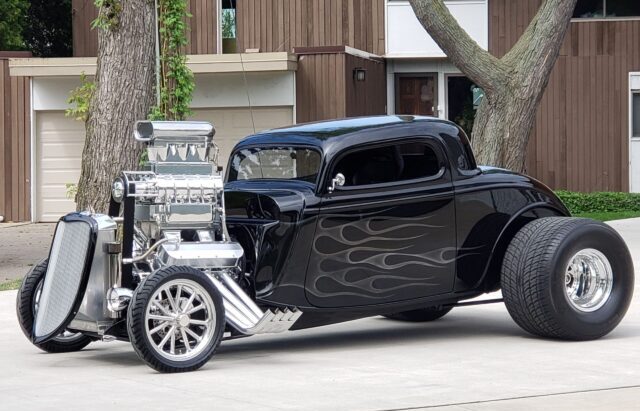

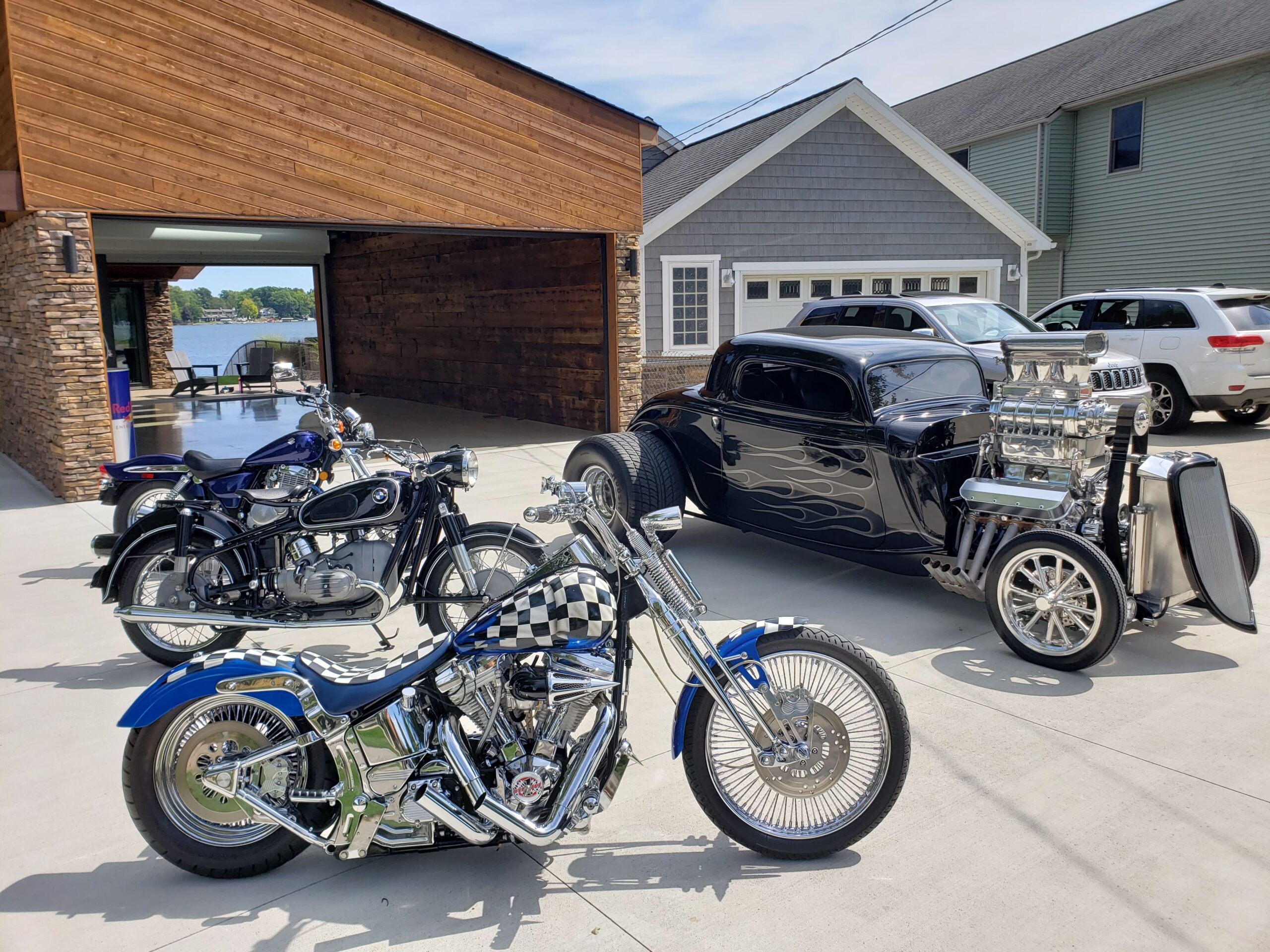

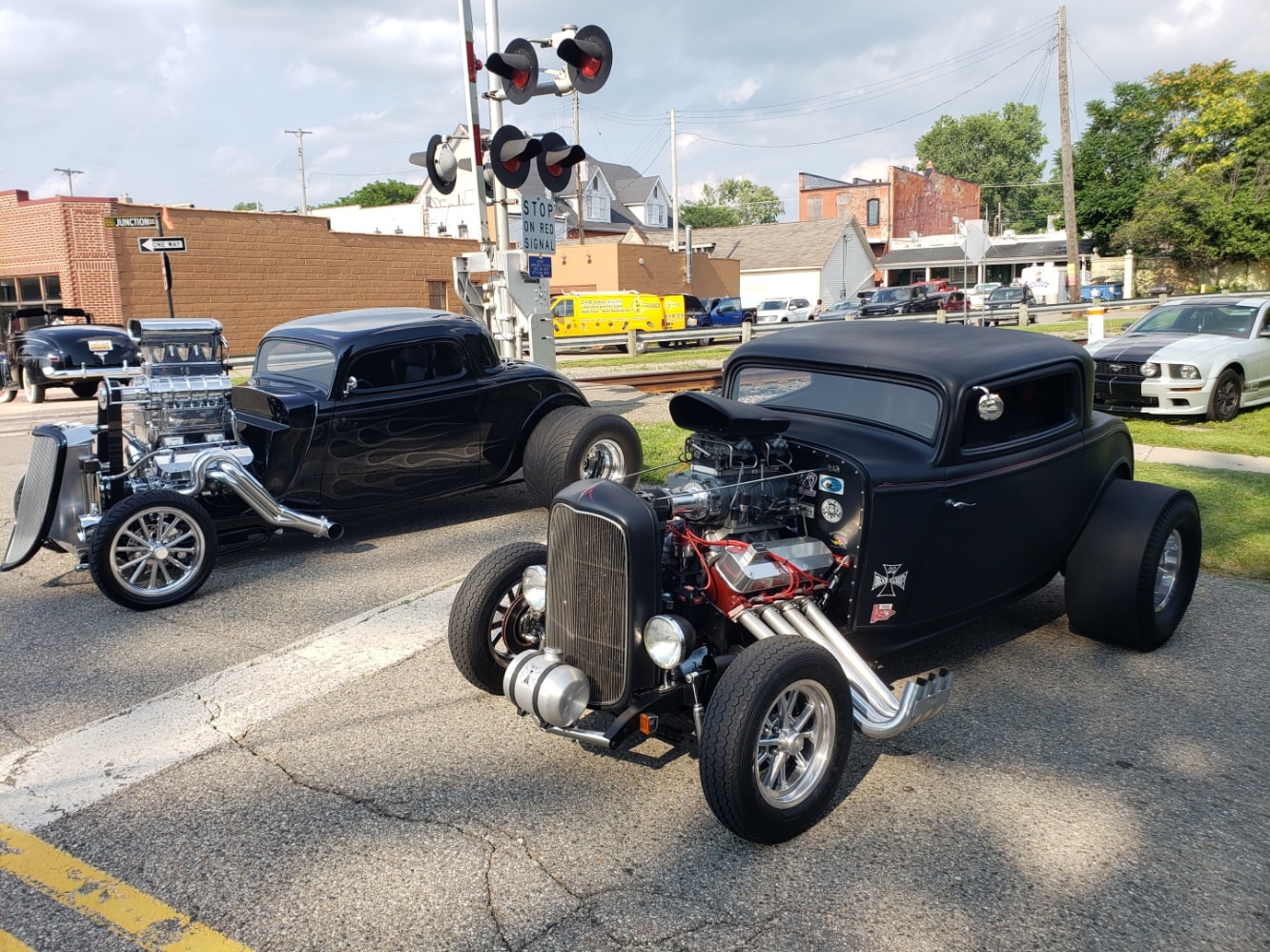

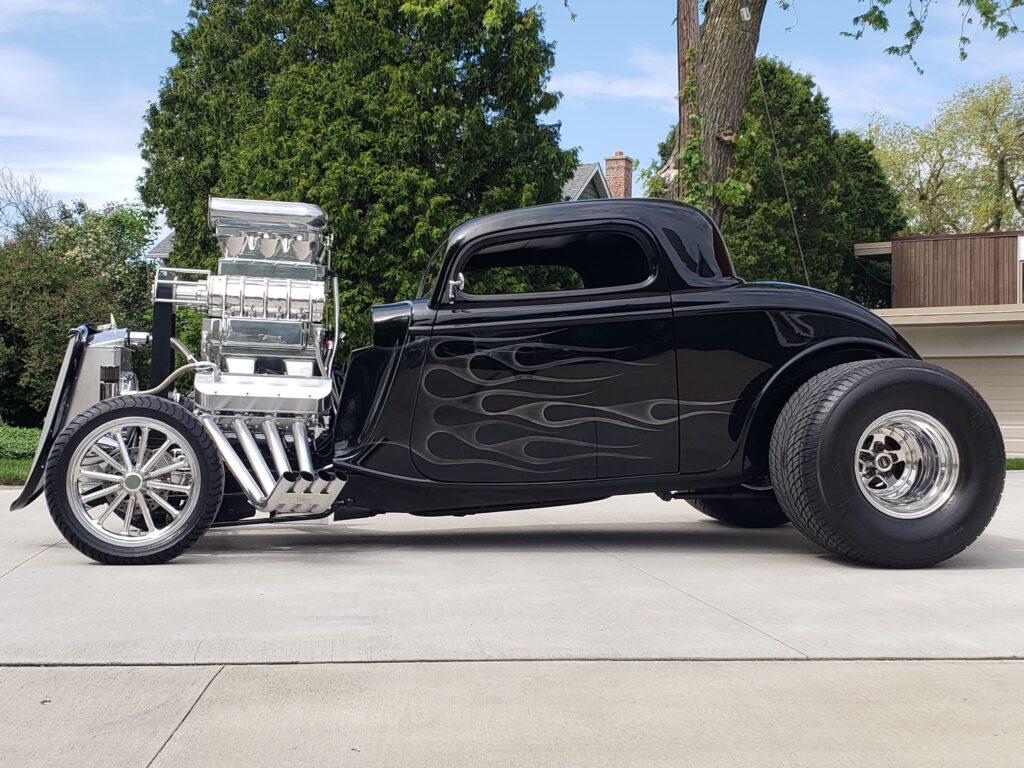

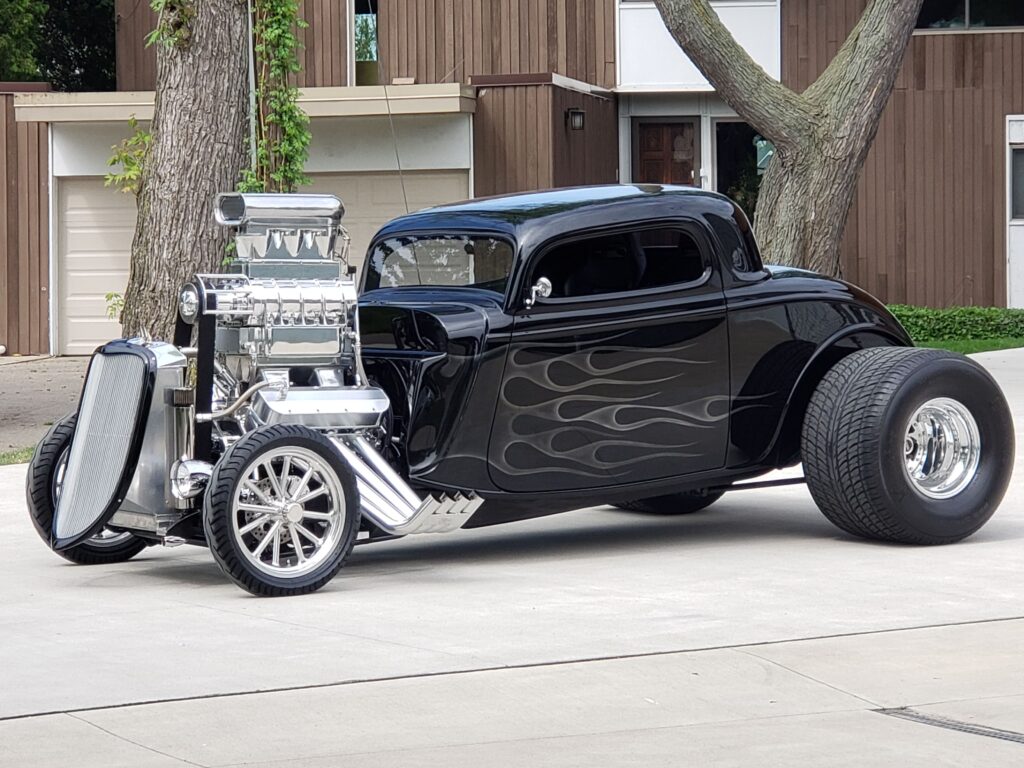

Eric Morse's 1932 Coupe might be one of the cleanest hot rods we have ever seen. Design-wise it really has seemed to find the perfect balance between being an over-the-top eye-catcher and an understated clean build.  Eric's vision for this coupe began in Flint Michigan, where he imagined a '30-'34 Coupe with a giant blown motor terrorizing the streets. That dream came to fruition once he acquired the car and began its restoration.

Follow Eric's YOUTUBE PAGE to see The Beast in ACTION HERE

Full Build list Below:

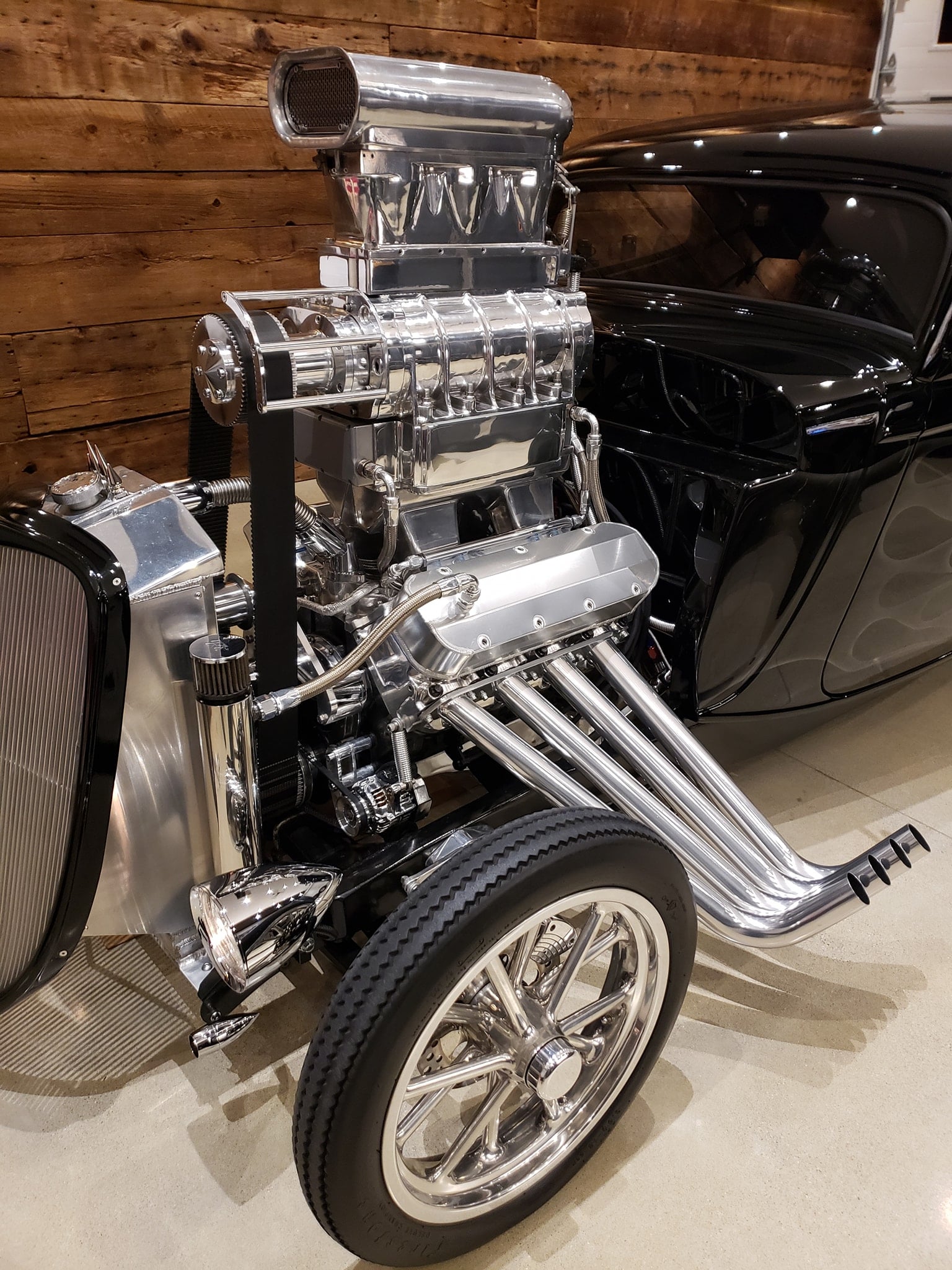

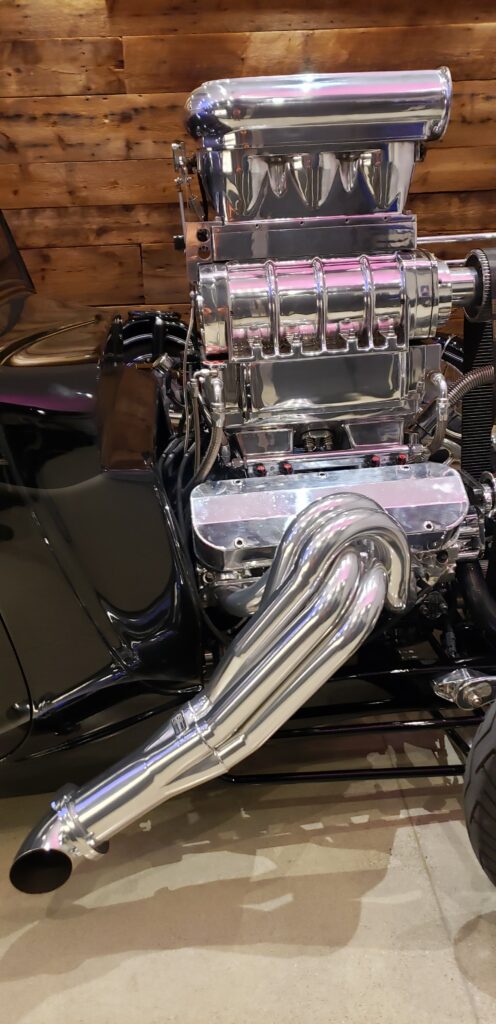

Engine
512 CI BBC Mark - IV Dart Big M Sportsman 10.2" x 4.375" Block (Bore 4.375" - Compression 8.63:1)
Heads Dart Pro 1 #1930030 345cc intake runners 119 Chamber 2.30/1.88 exhaust (Mk-4 style)
Intake Dart Tall Deck Tunnel Ram #41135000
Valve Train Stabilizer (Stud Girdles) Dart SN 454
Blower GMC 8-71 with Teflon strips
Blower Belt/Pulleys Belt=79.5" / Top Pulley=6.25" / Bottom Pulley=5.75"
Intercooler SuperChiller Intercooler 6:71 - 14:71 3/4" Part #SKU SCI 671-1471-34
Crank Eagle 4340 4.250" stroke 445442546385
Cam Howards Mechanical Roller 12113-14 Lift Int.680/Exh.680 Dur 300/310 Dur/50 .260/.270 114Deg.
Clutch RAM HDX Clutch Kit
Rods Compstar H-Beam 6.660" CSB 6660ES3B8AH
Push Rods Trend Performance S682 8.950" & 9.950" DBL Taper
Pistons Probe SRS 1.395/4.375/.990/-3cc Flat Top 13728-125
Valves Chamber 2.30/1.88
Rings Total Seal TS1 Gapless 2nd ring 4.380" file fit TOTT9190-130
Roller Lifters Crower 66291H-16
Roller Rocker Arms CompCams 1620-16 CB 1.7 7/16" Ultra Pro Mag
Rod Bearings Clevite H-Series Rod Bearings CB743HN - Standard Non-Chamfered Narrowed
Main Bearings Clevite H-Series Main Bearings MS829HXS - Standard +.001
Rear Seal Cometic Racing Crank Seal #COMC5381
Oil Pump Melling M77-HV
Timing Chain Howards BBC Double Roller Billet Steel 94305
Cam Button Cam Thrust Button .950 Long # 8141
Oil Pan Tray Milodon Diamond Stripper Windage Tray # 32260 Bolt Kit #81151
Oil Pan Gasket Fel-Pro PermaDryPlus 1 piece #OS30061T
Head Gaskets Cometic, MLS Head Gaskets 4.375", .040" #C5329-040
Intake Gasket Fel-Pro Intake Gasket Rect. Port 1.82 x 2.54 No Top Holes .120" #F1275-5
Valve Cover Gasket Fel-Pro Valve Cover Gaskets #FEL-1635 (1412)
Enderle Upright Mechanical Stack Injector Enderle Upright Injector 5.25" Opening
Air Tempurature sensor in Hat ACDelco Air Temperature Sensors 25036751
Air Scoop Hilborn 6-71GMC 4-Hole Air Scoop 3″
Distrubitor/Composite Gear Holley EFI DualSync Distributor #565-200 / Howard #94407
Exhaust Sanderson Zoomie Header Set - ZoomieBBC-SEC/Big Block Chevy/Silver Ceramic

Tranny, Rear End, Etc.
T-56 6-speed transmission Magnum 6-Speed Rear-Wheel Drive Manual Transmission
Ford 9" Rear End
Locker Differential Eaton Detroit Locker Differential 4.87:1 Gears
Front Tire Bridgestone Battlax BT-45 140/70-18M/C Sport Touring 25.7 x 5.7 x 18
Front Rim RADIR 12 Spoke Spindle Mount Wheel
Front Rim Bearing Kit RADIR 12 Spoke Spindle Mount Wheel Bearing Kit
Rear Tire Mickey Thompson Sportsman S/R Tire 33 x 22.00-15
Rear Rim Weld Racing Prostar Polished Wheel 96-515278???
Show Me Rod & Custom Body 2 3/4" Chop, Bear Claw Door Latches w/Hidden Hinges, Power Windows (New dash 2/24/2021)
Braking System Electro Boost 1900 psi Power Brakes

Technology
Dashboard / Gauges Holley EFI 12.3 in. Pro Dash Touch Screen
EFI Injection/ECU Control Unit Holley Dominator EFI Vehicle Management System #554-114
EFI Coil Driver Module Holley Sniper EFI Coil Driver Module
Hyperspark Ignition Coil Holley Sniper EFI Hyperspark Ignition Coil 43,000 Volt
Hyperspark Ignition Box Holley Sniper EFI HyperSpark CD Ignition Box
Harness (Main) Holley Main #558-105
Harness (Power) Holley Power #558-308
Harness (Injector) Holley Injector #558-200
Fuel Injectors DeatschWerks #18U0100788 Flow Rate 819.0cc/min 1000 CC
Fuel Pump Holley Dominator In-Line Billet Fuel Pump #12-600 - 160 GPH/80 PSI -10 O-Ring
Fuel Filter Aeromotive Fuel Filter #12324 - Inline Mouont 100 Microns/2000 lbs./hour
Spark Plugs V-Power Racing Plug #4554 (R5671A-8)
Spark Plug Wires Livewires: Part #C9051BKP
Oxygen Sensor Holley EFI O2 Sensor
Bar Map Sensor AEM Electronics MAP Sensor
ECU Gauges RPM, TP%, Coolant Temp, Manifold Temp, Boost, Battery Voltage, Air Sensor.
